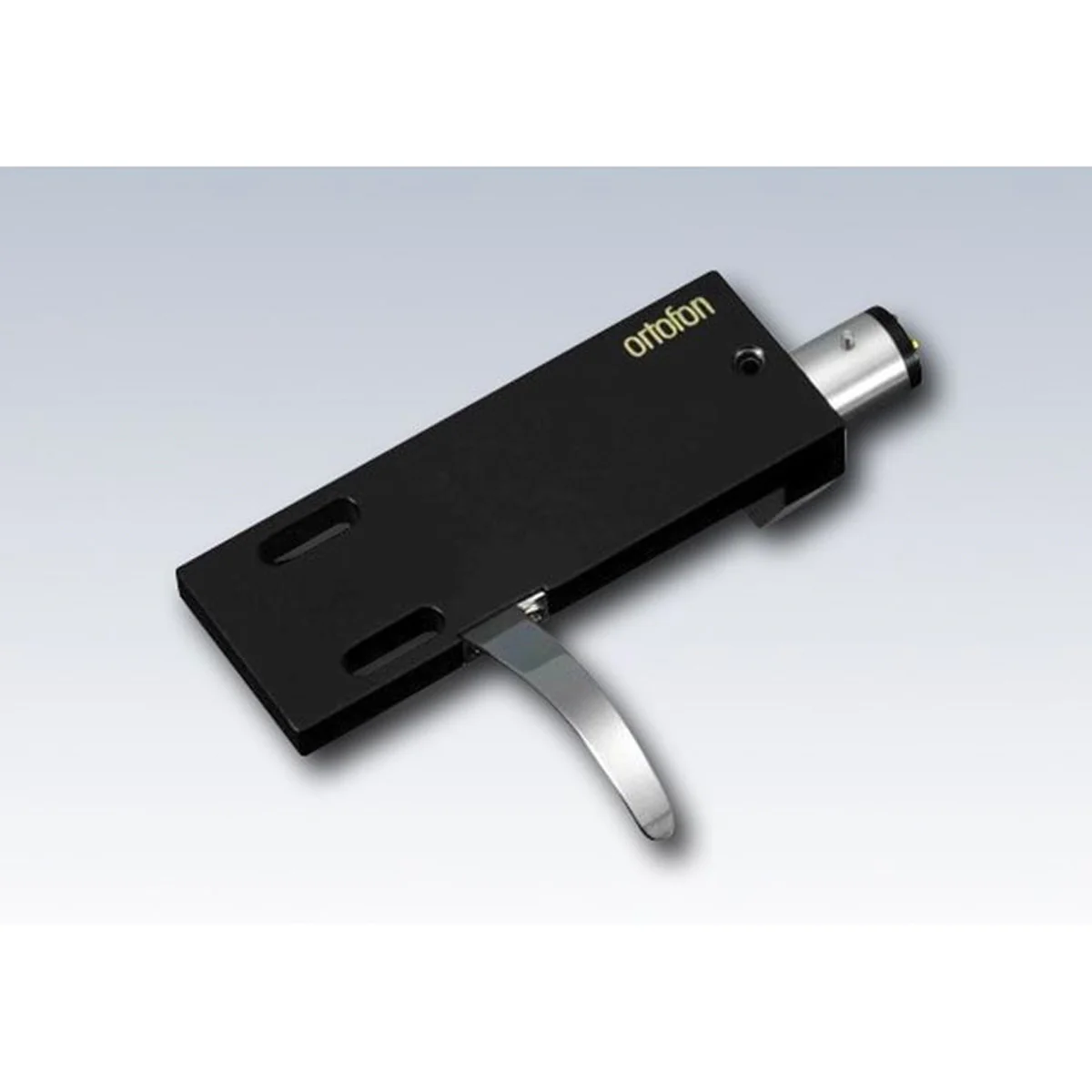

Ortofon LH-4000 Headshell

Special features:

• Azimuth adjustable, which is beneficial for optimal channel separation
• Ergonomic fingerlift for easy handling
• Knowing the fundamental headshell dimensions will in a lot of cases make it easier to mount and align cartridge and tonearm correctly.

The LH-4000 comes with leadwires for easy and convenient connection
All Ortofon cartridges have a color coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend connecting lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

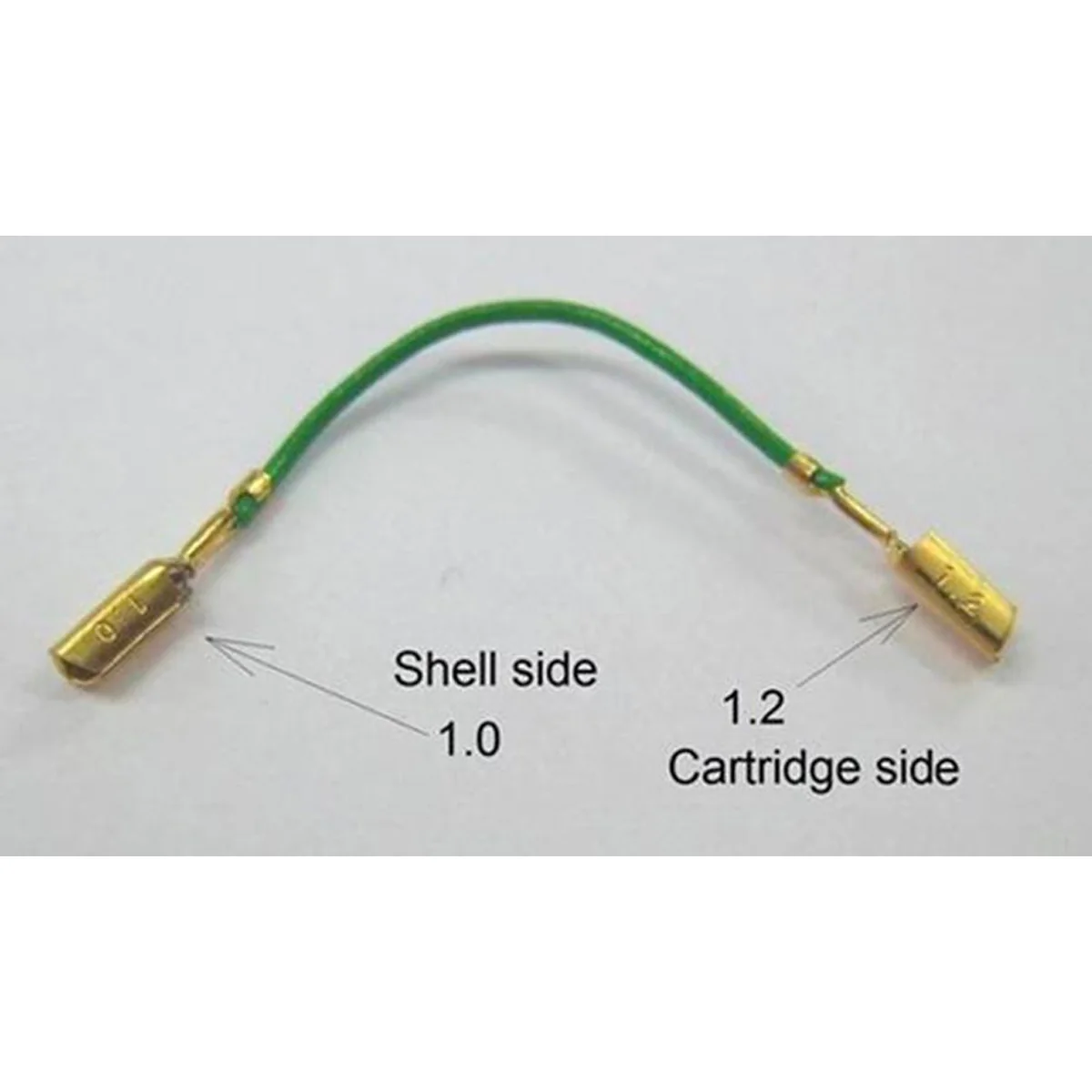

Please remember the correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.
